OHT (Assisted Arm Transport System)
The OHT system is an important automatic handling system in new energy battery manufacturing plants. It improves the overall production process to a great extent by improving material transportation efficiency, reducing labor costs and reducing pollution risks.
OHT (Assisted Arm Transport System)
OHT (Powered Arm Handling System) plays an important role in the new energy manufacturing process, bringing significant benefits to enterprises by improving production efficiency, reducing manual intervention, reducing pollution risks and saving space.
-
Receive material transport request:
- The Material Control System (MCS) receives material transport requests from different workstations.
-
Planning the best path
- MCS calculates the optimal path for the assist arm from the starting point to the end point.
-
Controlling the movement of the power arm
- The control system controls the power-assisting arm to move to the specified position along the guide rail according to the instructions of the MCS.
-
Pick up and place materials
- OHT completes the loading and unloading of the cold pressing, die-cutting and winding equipment according to the system instructions.
-

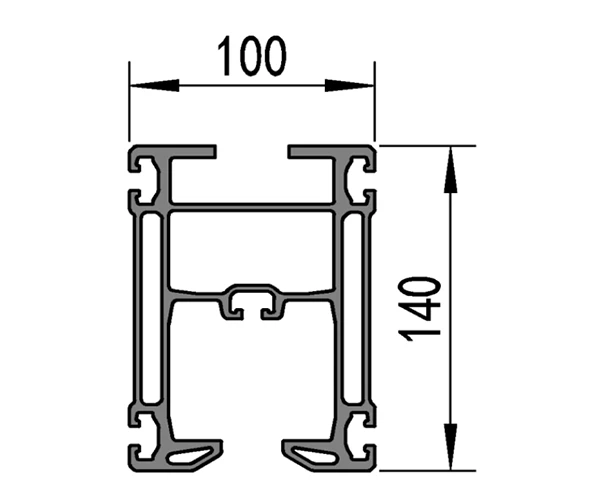

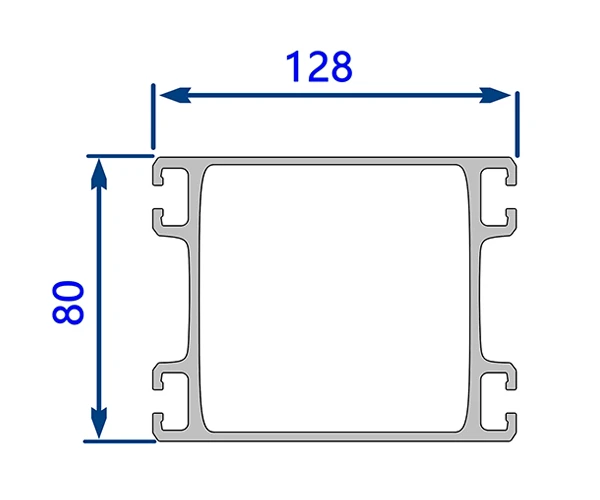

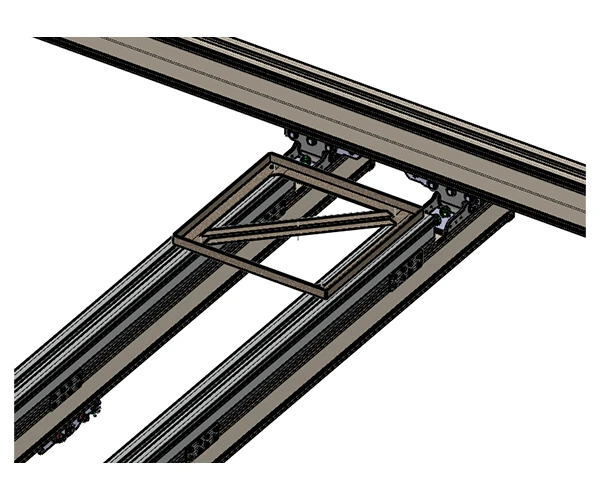

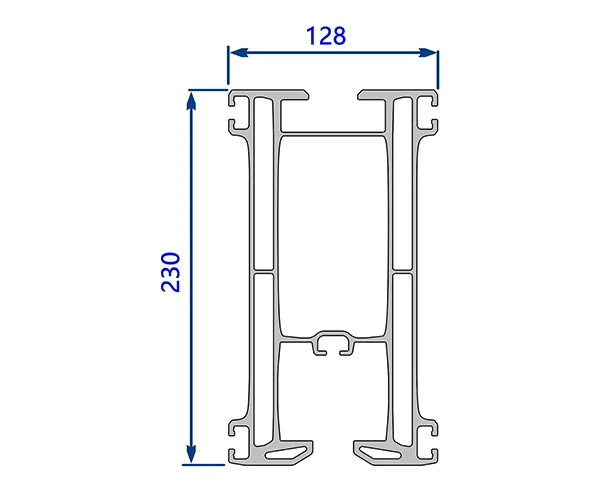

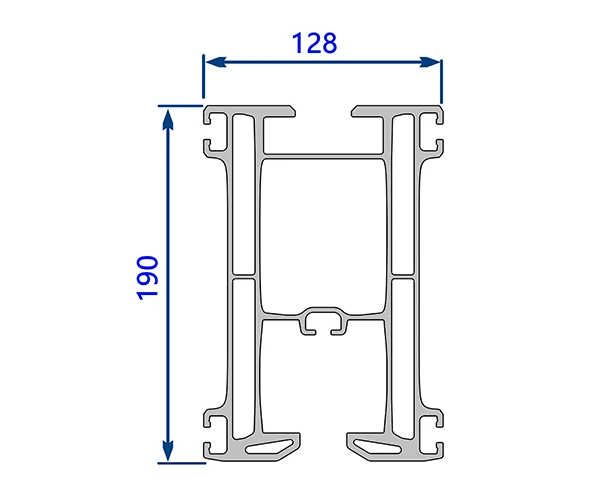

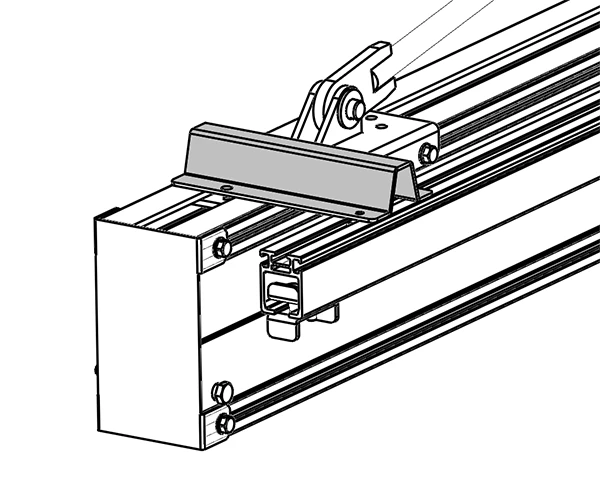

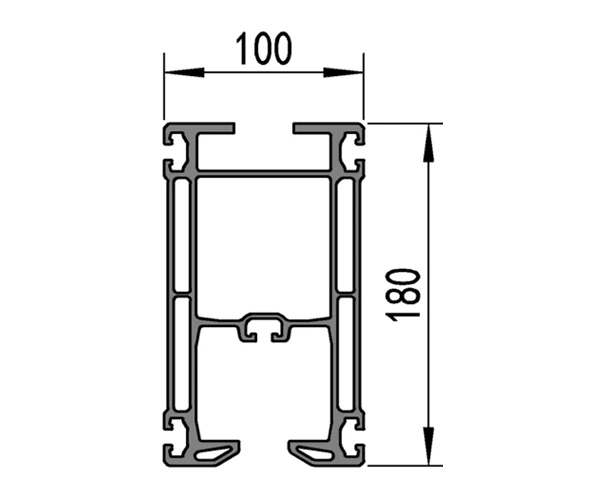

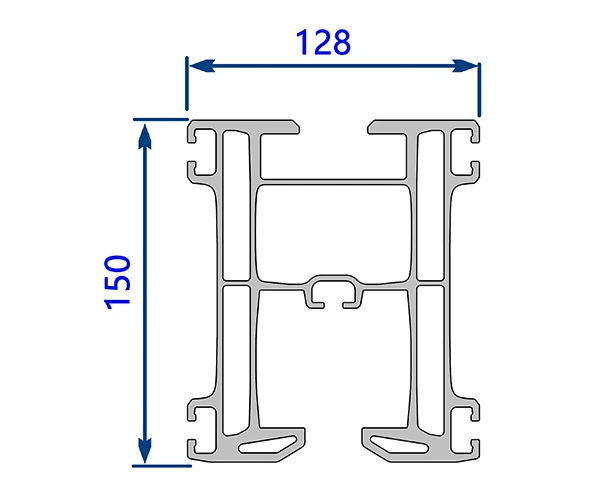

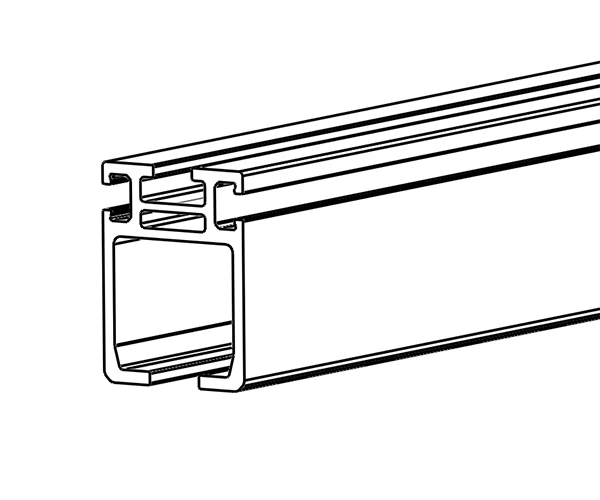

Track
- Tracks installed on the ceiling of the factory building for the movement of the crane
-

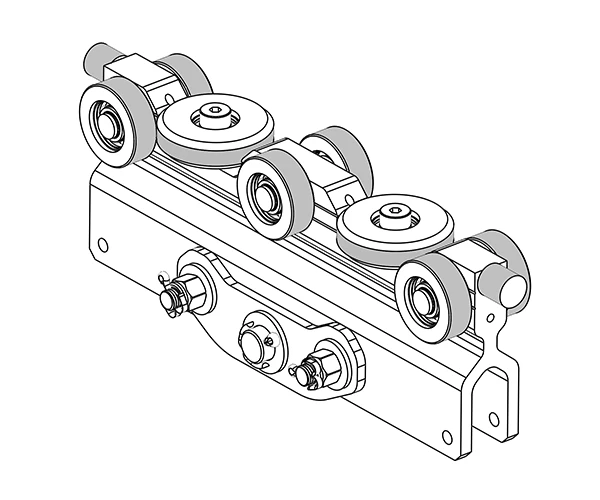

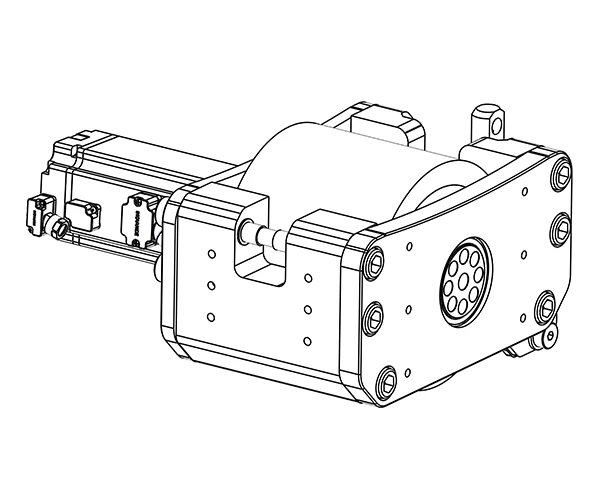

Booster arm
- A lifting device that moves along a rail to grab and place objects.
-

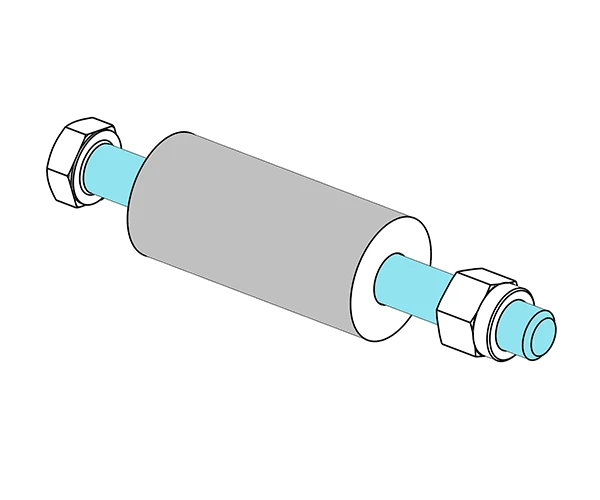

Load bearing shaft
- Special carrier for carrying and protecting the foil material
-

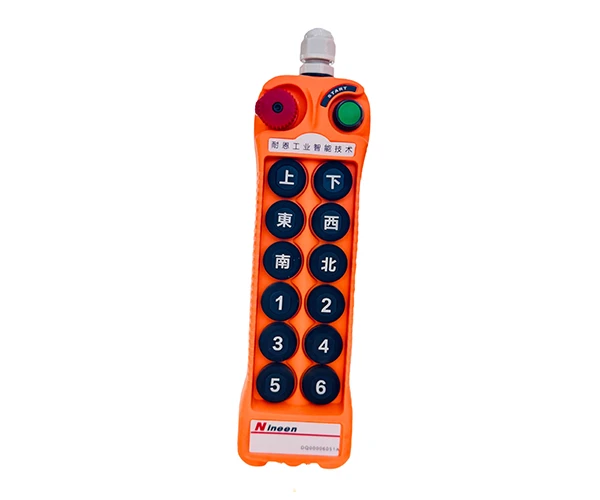

Control System
- An automated system responsible for controlling the movement of the power arm, grabbing and placing materials
OHT (Assisted Arm Transport System)
-
Improve production efficiency
- OHT can move materials from one location to another in a short time, reducing the time required for material transportation and thus improving production efficiency.
-
Reduce manual intervention
- OHT's automated operation reduces contact between personnel and materials, lowering the risk of contamination.
-
Save space
- OHT is installed on the ceiling and does not occupy floor space, thus improving space utilization.
-
Reduce costs
- OHT's automated operation reduces labor and maintenance costs.
-
Improve reliability
- OHT has high operational stability and reliability, ensuring the continuity of the production process.
- Is the OHT power arm handling system suitable for our production environment?
- OHT power arm handling system is suitable for a variety of production environments, including automobile manufacturing, electronic assembly, logistics warehousing, etc. Its design is flexible, and the track length and height can be customized according to the workshop layout. You need to provide the workshop space dimensions (such as height, span), ground load (generally ≥500kg/m²) and handling requirements (such as maximum load, operating frequency), and we will customize the solution according to your needs.
- What is the load-bearing capacity of the equipment? Can it meet our cargo needs?
- The single-point lifting weight of the OHT power arm handling system is usually between 100kg and 2000kg, depending on the model and track configuration. For example, the standard model has a load capacity of 100kg-500kg, while the heavy-duty system can carry a higher weight. The type of goods (such as parts, molds) and the weight of each piece must be provided, and the supplier will recommend an appropriate model.
- Is the operation complex? Does it require specialized training?
- The OHT power arm handling system is easy to operate and supports manual, semi-automatic or fully automatic operation. We will provide free basic training (1-2 days) covering equipment operation, daily maintenance and safety regulations to ensure that employees can get started quickly.
- How safe is it? Is there any fall protection or overload protection?
-
The OHT power arm handling system is equipped with multiple safety mechanisms:
- Mechanical: limit switch, anti-fall hook.
- Electrical: overload protection, emergency stop button.

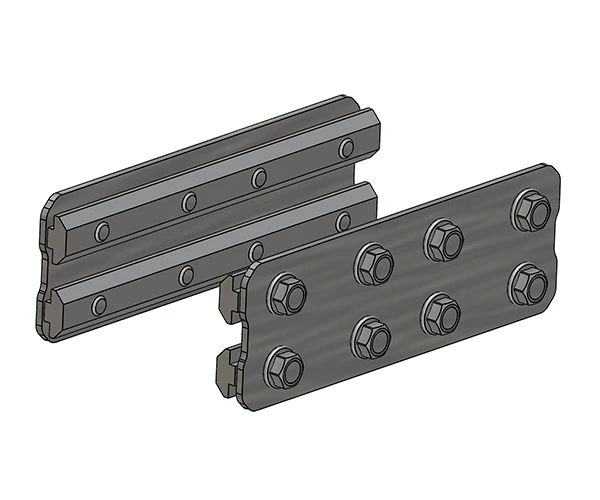

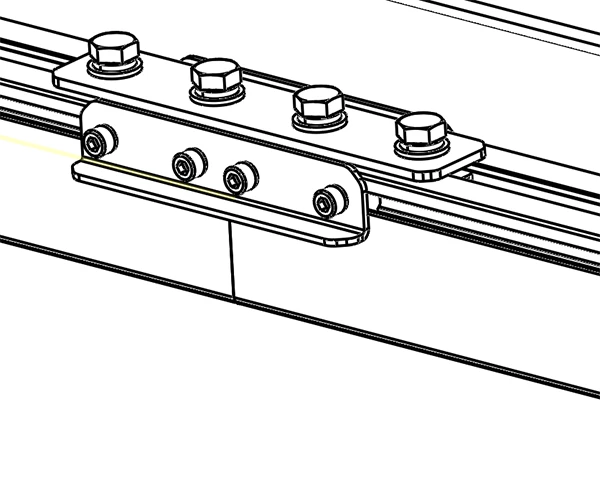

- Structure: high-strength rails and connectors to ensure stable operation.
- How fast is the after-sales response? How long does it take to resolve the problem?
-
Regular suppliers promise:
- Remote support: respond within 2 hours, provide guidance to troubleshoot simple faults.
- On-site service: arrive within 24 hours (within the province)/48 hours (across provinces), 90% of faults can be resolved within 4 hours.
